LOADER ROCK BUCKETS
MODEL DESCRIPTION
Loader rock buckets are made from welded S355J2+N steel and are finished with HARDOX 450 main and side blades and scraping plates as well as adapters and the CAT tooth system.

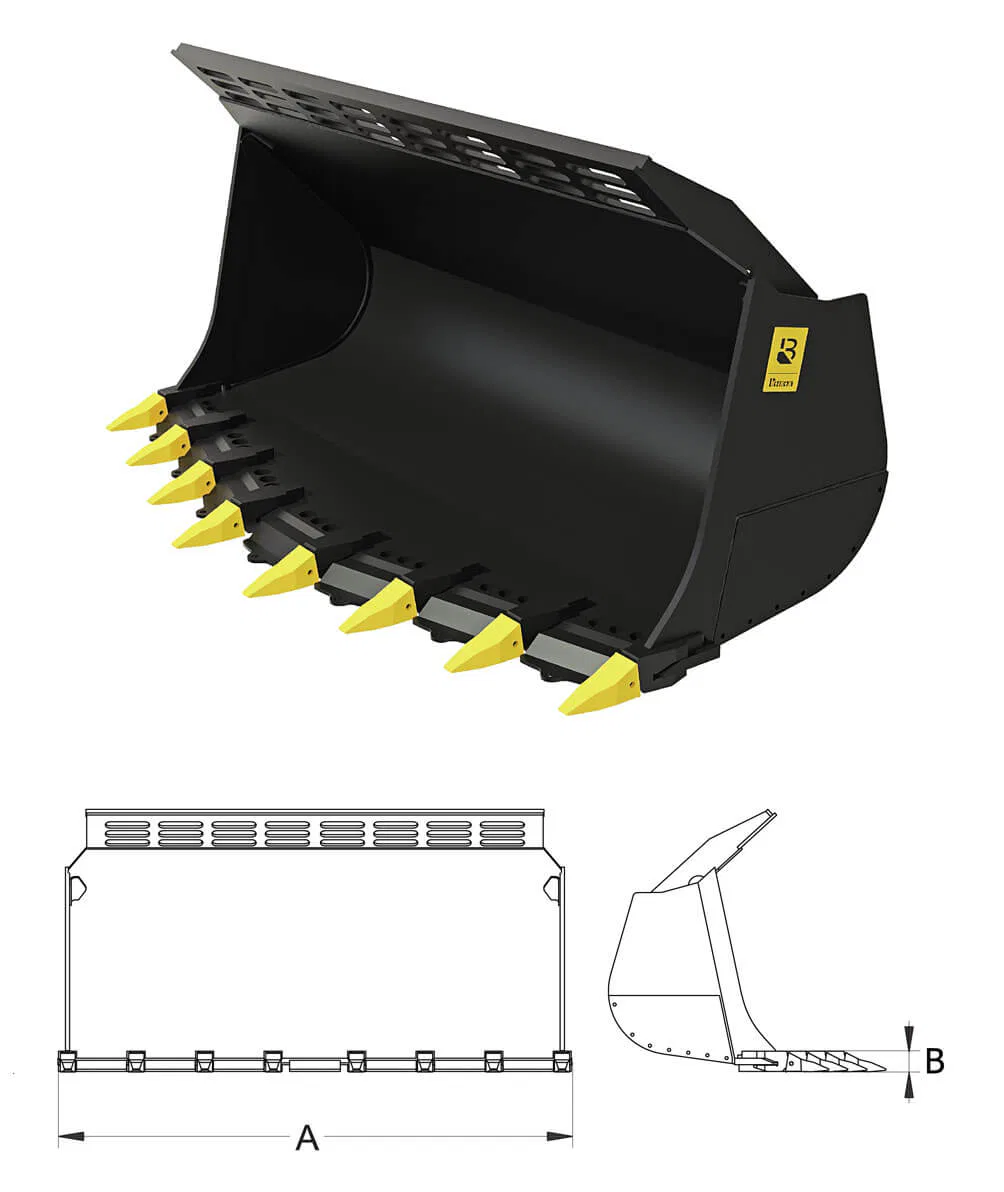

| Technical information | ||||
| TL | Volume (m3) | A Blade width (mm) | B Blade thickness (mm) | Number of teeth |
| 10 | 2,7 | 2 800 | 35 | 8 |
| 11 | 3,2 | 3 000 | 40 | 8 |
| 12 | 3,6 | 3 200 | 50 | 8 |
| 3,6 | 3 200 | 45 | 8 | |
| 13 | 4,8 | 3 600 | 50 | 8 |
